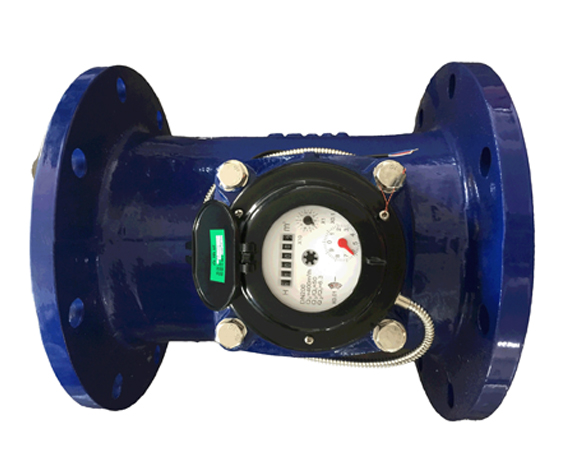

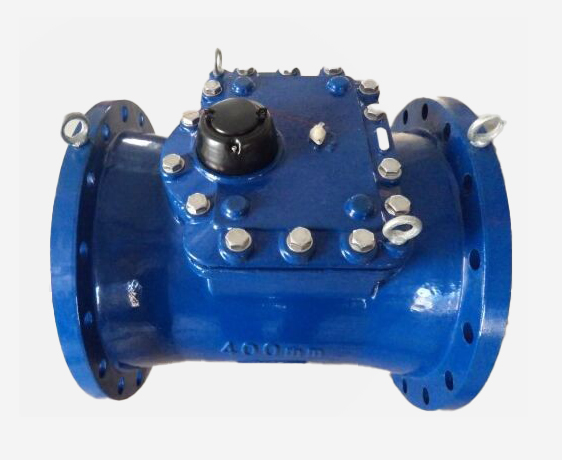

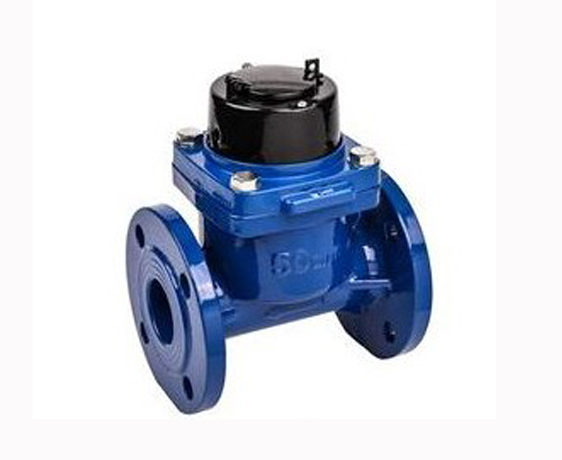

Woltman Water Meter

Application:
to totalize the total volume of water passing through the pipeline.
Operating condition: PN: 1.0/1.6mPa( 10/16bar)

Feature:
1.Removable element structure, easy installation and maintenance;
2.Dry-dial, Magnetic drive;
3.Large flow capacity, small pressure loss;
4.Resist water hummer and pollution;
5.Vacuum sealed register ensures the dial keep free from condensation and keep the reading clear in a long term service;
6.Selected high quality materials for steady and reliable characteristic;
7.Technical data conform to international standard ISO 4064.
The meters can be equipped with a kind of remote transmission device, the pulse generating volume could be 100,1000 or 10000 L/pulse.
Working condition:
Water temperature:0.1ºC~50ºC (0.1ºC~90ºC for hot water meter)

Maximum permissible errors:
In the lower zone from qmin inclusive up to but excluding qt is ±5%
In the upper zone from qt inclusive up to and including qs is ±2% (±3% for hot water meter)
Main technical specification:

Size (mm)	Class	Overload Flow (m3/h)	Permanent flow (m3/h)	Transitional Flow (m3/h)	Minimunm Flow (m3/h)	Min Reading (m3)	Max Reading (m3)
50	B	31.25	25	0.8	0.5	0.001	999999
65	B	50	40	1.28	0.8	0.001	999999
80	B	78.75	63	2.016	1.26	0.001	999999
100	B	125	100	3.2	2	0.001	9999999
125	B	200	160	5.12	3.2	0.01	9999999
150	B	312.5	250	8	5	0.01	9999999
200	B	500	400	12.8	8	0.01	9999999
250	B	787.5	630	20.16	12.6	0.01	9999999
300	B	1250	1000	32	20	0.01	9999999

Overall Dimensions and weight:

Type	Size	Length (mm)	Width (mm)	Height (mm)	Outer diameter of flange D(mm)	The center diameter of connecvting bolt D1(mm)	Connecting bolt (Pcs)	Weight (kg)
LXLC(R)-50	50.	200	165	215	165	125	4xM16	12
LXLC(R)-65	65	200	185	223	185	145	4xM16	13
LXLC(R)-80	80	225	200	233	200	160	8xM16	15
LXLC(R)-100	100	250	220	288	220	180	8xM16	19
LXLC(R)-125	125	250	250	298	250	210	8xM16	23
LXLC(R)-150	150	300	285	342	285	240	8xM20	30
LXLC(R)-200	200	350	340	370	340	295	12xM20	42
LXLC(R)-250	250	400	395	413.5	395	350	12xM20	51
LXLC(R)-300	300	450	445	463.5	445	400	12xM20	63

MOQ:
We will accept your trial order or sample order.
Logo:
Customers could customize their logo or lable on the water meter.
Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7  days after we come to an agreement.
Delivery time:
Start shipping within 10--25 days after signing the contract.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
List Of Competitive Advantage:
1. We are factory, can provide you high quality, best price
2. Professional employee and effective management
3. Professional trading service
4. Prompt delivery
5. Good service & reputation
6. Large production line


Thank you. If you require samples, we can send them to you after confirmation.
Hope we can have cooperation, welcome to visit!
