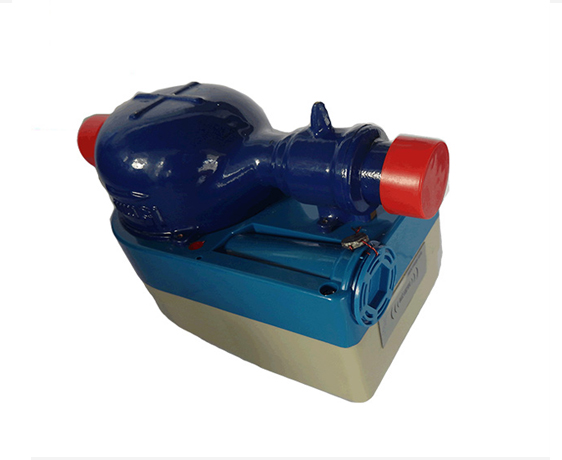

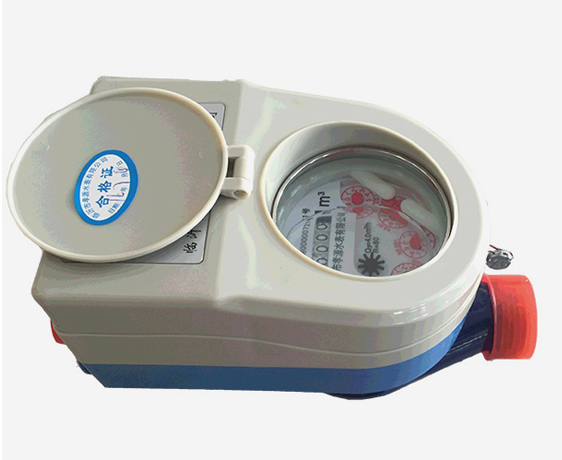

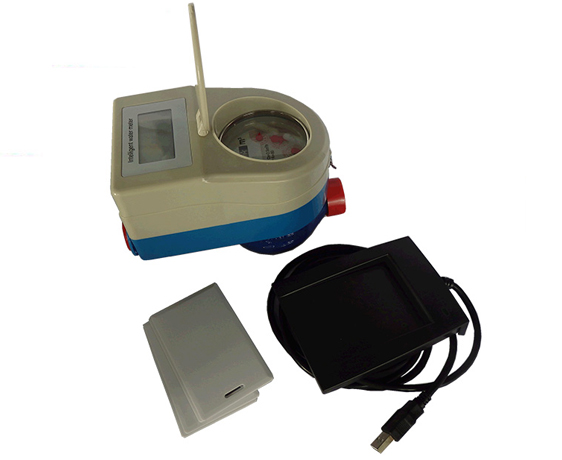

NFC Brass prepaid residential water meter with card
At present, domestic residential water meters mainly include the following: card prepaid water meter, wireless remote water meter, wired remote water meter. Card prepayment water meter transfers pre stored data through CPU card or logic encryption card. This method is reliable for pre stored data, but it brings many problems to the supervision of water company. It is unable to monitor the status and consumption information of user water meter in real time, resulting in many management loopholes. Both wireless remote transmission and wired remote transmission are managed by centralized reading through network. The cost of networking is relatively high, and the impact of networking on the environment is relatively large, which brings inconvenience to the maintenance of the system. Moreover, power consumption is also a technical problem of centralized meter reading, and there is no effective solution for the time being.
In order to improve the shortcomings of traditional prepaid water meters, starting from the working mode and protocol architecture of NFC(Near Field Communication), the system power consumption is greatly reduced by using the wake-up mechanism of NFC protocol, and a prepaid smart water meter with NFC Communication function is designed and implemented. The user does not need to move to the water charge charging point to recharge the water charge or inquire the water consumption at home. The management department can also get the status of the water meter in time and grasp the detailed historical water use data of the user. It can not only meet users' demand for quick payment, but also facilitate water department management.
|
Item |
Functions |
Display |
LCD screen |
Display status of input water volume, surplus water volume, total volume, payment, closed, open, error, low battery, under attack |
Digital show |
maximum total water volume9999.9m3 |
|
Water supply control |
Auto closes the valve when water volume is little, and open when inserting new prepaid card. |
|
Auto control |
Low battery alarm |
Auto closes the valve when battery is low, prompt to change the battery. |
Hardware security |
Auto closes the valve when the pulse line is cut off, and alarm under attack, which must repaired by administrator. |
|
Anti magnetic attack |
Auto closes the valve when strong magnetic close to the meter, need inserting card to reopen the meter. |
|
Power off detection |
Detecting the circuit after power up to check normal or not. |
|
Waterproof |
Reading card as normal even the meter part is in water. |
|
Auto maintenance |
Automatic switch valve for discharge once a month. |
|
Water quota |
You can set a limit to use water. Unable to input water volume more than limit. |
|
Zero-crossing solution |
User information would feedback to the superior software for processing when the valve failure to close in zero-crossing. Extra water volume will be record. |
|
Working features |
Moisture-proof pulse line |
The pulse output is not affected by moisture, data will record as normal. |
Multi-application card |
The first inserting of card in a new water meter will write in Card No. User ID, Water Volume. A card would serve in a total of 4 set of cold water meter, hot water meter, heat meter and pure-water meter at the same time. |
|
Data Recovery |
When the meter is damaged, please insert the read-in card to collect user data and transfer data by inserting to a new meter. |
|
Initialization |
Remove all information in the meter by inserting Initialization card, and set the starting line of water meter. |
|
Control card |
When the meter break down, please insert control card to detect fault or to force the valve open. |
|
Card Reissue |
You can register a new card with original data if lost the user card. |
Model (DN) |
15D |
20D |
25D |
Overload Flow Qmax(m3/h) |
3 |
5 |
7 |
Normal Flow Qn(m3/h) |
1.5 |
2.5 |
3.5 |
Transitional Flow Qt(m3/h) |
0.12 |
0.2 |
0.28 |
Min.Flow Qmin(m3/h) |
0.03 |
0.05 |
0.07 |
Technical Standards |
ISO4064, GB/T778, JB/T8802, JJG686, CJ/T133 |
||
Valve Life |
≥5,000 times |
||
IC Card Life |
≥100,000 times |
||
Min.Reading |
0.0001 m3 |
||
Max.Reading |
99999 m3 |
||
Power Supply |
3.6V lithium battery, life≥6 years |
||
Security |
Unique Card/Meter |
||
IC Card Life |
≥ 100000 times |
||
Static Working Current(uA) |
≤6 |
||
Error Qmin to Qt |
≤±5% |
||
Error Qt to Qmax |
≤±2% |
||
Working Condition |
Indoor using, relative humidity ≤93%, Cold water Meter ≤40°C,Hot water meter≤90°C, Water quality conforms to the National tap water standard |
