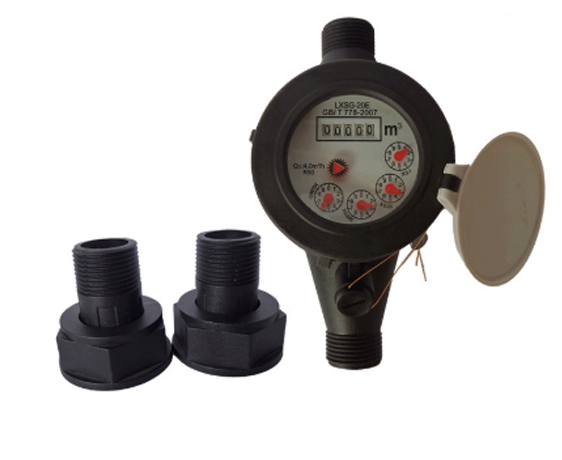

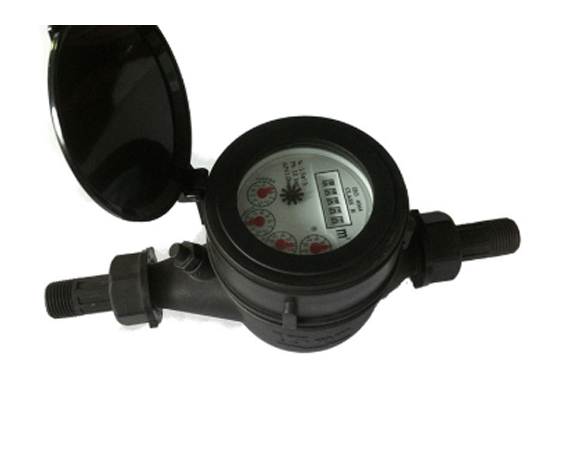

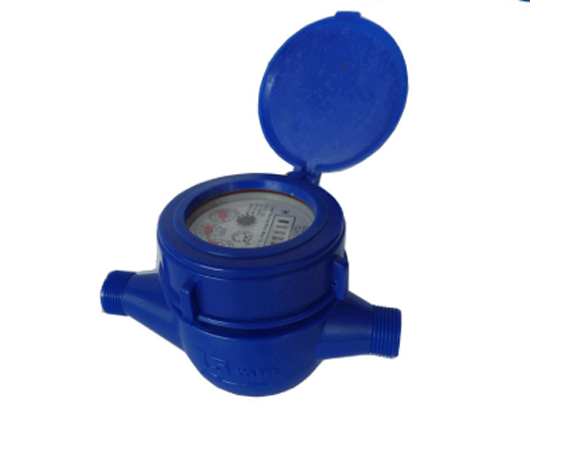

Plastic Multi Jet Water Meter

High quality best price nylon water meters, widely used and exported products!

Specification:

Nylon watler meter
1.Nylon material
2.Multi-jet, dry-dial, rotary vane wheel
3.Accuracy ISO4064
Feature:
1. Working pressure and condition are all conform to international standards.
2. Corrosion resistance and Anti-aging.
3. Environmental protection and long service life.
4. Magnetic drive, resistance to exterioor magnet interference.
5. Vacuum sealed register ensures the dial kept free from fog and keep the reading clear in a long term service.
6. Measuring accurancy conform to ISO 4064 Class B standard.
7. Selected high quality & nontoxic plastic materials for steady, reliable characteristic and good looking.

Working condition:
Water temperature: 0.1°C~40°C for cold water meter .
0.1°C~90°C for hot water meter.
Water pressure : ≤1.0Mpa or 1.6Mpa
Maximum permissible error:
(1) in the lower zone from qmin inclusive up to but excluding qt is ±5%.
(2) in the upper zone from qt inclusive up to and including qs is ±2%;
Hot water meter ±3%
Technical data:

Nominal size DN (mm)	Class of measurement	Maximum flow-rate Qmax(m3/h)	Nominal flow-rate Qn(m3/h)	Transitional flow-rate Qt(l/h)	Minimun flow-rate Qmin (l/h)
15	B	3	1.5	120	30
20	B	5	2.5	200	50
25	B	7	3.5	280	70
32	B	12	6	480	120
40	B	20	10	800	200
50	B	30	15	3000	450

Overall dimensions and weight:

Type	Size (mm)	Length (mm) L	Width (mm) W	Height (mm) H	Connecting Thread D	Weight (kg)
LXS-15E	15	165	80	100	G 3/4"B	1.1
LXS-20E	20	190	98	105	G 1"B	1.3
LXS-25E	25	220	105	110	G 1 1/4"B	1.7
LXS-32E	32	260	120	120	G 1 1/2"B	2.0
LXS-40E	40	300	120	155	G 2"B	2.2
LXS-50E	50	300	125	155	G 2 1/2"B	2.4

MOQ:
We will accept your trial order or sample order.
Logo:
Customers could customize their logo or lable on the water meter.
Sample Policy:
We will send samples to you( by TNT or DHL or EMS) for your confirmation within 2-7  days after we come to an agreement.
Delivery time:
Start shipping within 10--25 days after signing the contract.
Payment terms:
L/C, T/T, Western Union, MoneyGram, Paypal.
Shipping:
We can arrange the shipping by Courier ( DHL, UPS, Fedex , TNT etc. ), by air or by sea for you.
List Of Competitive Advantage:
1. We are factory, can provide you high quality, best price
2. Professional employee and effective management
3. Professional trading service
4. Prompt delivery
5. Good service & reputation
6. Large production line


Thank you. If you require samples, we can send them to you after confirmation.
Hope we can have cooperation, welcome to visit!
